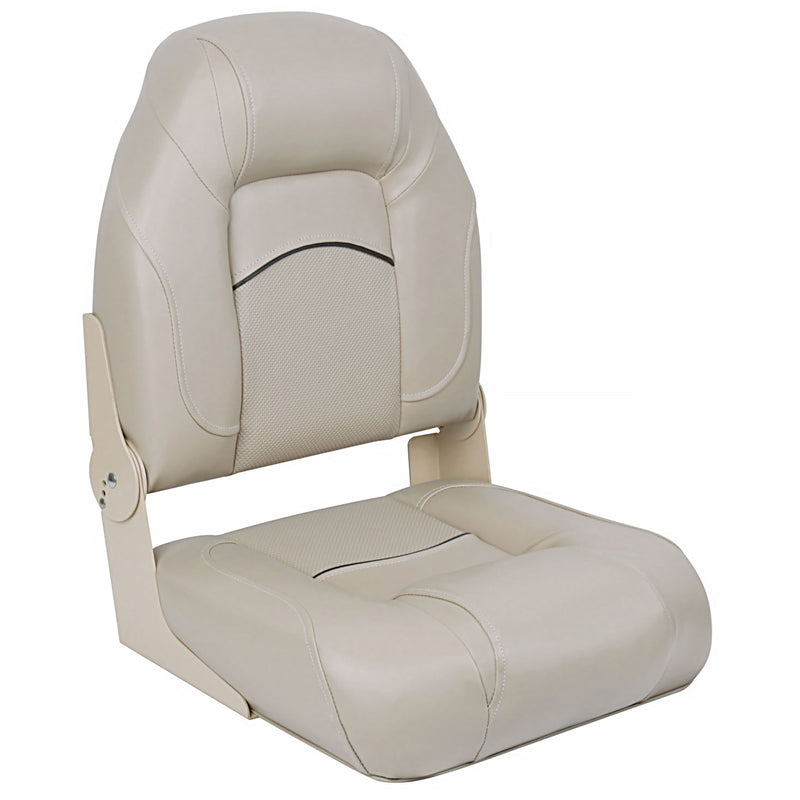

Hinge Mount High Back Seats
Move your mouse over image or click to enlarge
Hinge Mount High Back Seats Hinge Mount High Back Seats Hinge Mount High Back Seats Hinge Mount High Back Seats Hinge Mount High Back Seats Hinge Mount High Back Seats Hinge Mount High Back Seats
Hinge Mount High Back Seats


Part #: FS30-400



17" Bench Mounted High Back Boat Seat

  • 17" wide fold down seat with plastic frame
  • Boat seat folds flat and can be strapped shut
  • Bench mounted seat is designed with step back

Factory Grade Replacement Seats

  • 3 year full replacement warranty on upholstery
  • 30oz soft to the touch, marine grade seat vinyl
  • Pinchless hinges are powder coated aluminum
  • Heavy duty hold down straps will not stretch or fail
  • Plastic frames with 100% stainless steel hardware
  • All mounting hardware is included (stainless)




Installing Your Boat Seats

Hardware Included:

1. (2) Aluminum hinges with vinyl covering.

2. (4) #12 x 1" stainless steel screws (2 per hinge).

Bench Seat Hinge Down Installation:

Note:  For this type of seat installation you will use the hinges with vinyl covering that are included.

1.  Attach the included hinges to the bottom of the bench boat seat, be sure to use the vinyl piece to cover the hinge.  2.  Determine the mounting location on your boat's seating platform and screw the hinge with vinyl piece to your boat.  3.  The matching vinyl piece will hid the hinge once the seat is installed.  (we include vinyl that matches the base color of your seat)   Bench Seat Bolt Down Installation:

Note:  For those boats with lids that hinge forward you can bolt the fold down seats to your seating platform.

1.  Located on the bottom of the bench seat are (4) stainless steel bolts that are pre-installed into t-nuts that are built into the plastic frame of each boat seat.   2.  Remove these stainless bolts and place the folding boat seats into the position you wish to mount them. Determine the mounting location and pre-drill holes through your lids.  3.  Install the mounting bolts through your boat's lids and into the t-nuts located on the bottom of each boat seats plastic frame.


5 out of 5, based on 3 reviews
chinnookbuster from Winston-Salem on Dec 21, 2015
Can't comment on the seats as of yet, they are Xmass gifts for my son. I can say that the comm's and the shipping are Unbelievable!!! By that I mean...I ordered these seats at 2:50 pm, confirmation number at 3:00, and shipping confirmation number at 3:30 pm!!! I couldn't believe it!!! I'll give a review on the seats later. If my son needs anything else for his boat...I'm looking here 1st!!! You guys Rock!!!
George Garcia from Santa Paula on Nov 19, 2015
These are some of the best seats ever had so comfortable and they look good on my boat
Larry from Goldsboro, NC on Apr 12, 2015
Installed these in a 1994 Sprint 266 F/S and they fit and look great. Seat is well made and would be a perfect addition to any older or newer boat.
